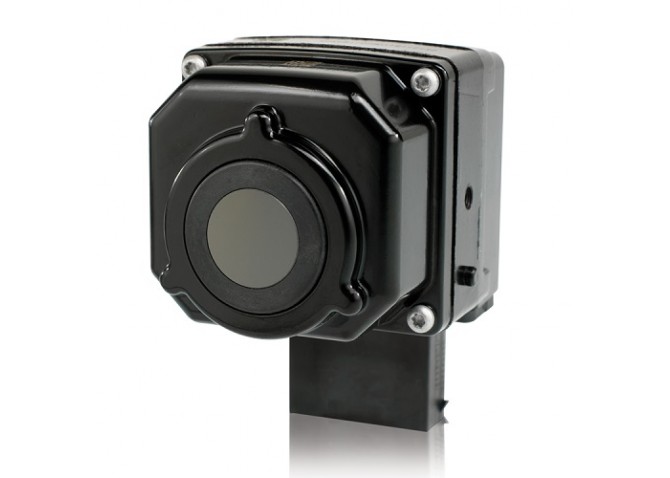

FLIR PathFindIR II 7.5Hz Vehicle Thermal Imaging Camera, No Logo Screen
Downloads:
datasheet
FLIR PathFindIR II 7.5Hz Vehicle Thermal Imaging Camera, No Logo Screen

FLIR PathFindIR II 7.5Hz Vehicle Thermal Imaging Camera, No Logo Screen

Model: 334-0057-00

Automotive Night Vision Driving System that allows drivers to see clearly in total darkness. No Person or Animal detection with this model. No logo or splash screen upon startup. 7.5Hz.

Session->read('Store.Store.currency_id'))] : ($option['price'] === 0 ? 'free' : $option['price'][strtolower($this->Session->read('Store.Store.currency_id'))])), 'type' => 'checkbox', 'hiddenField' => false ) ($option['price'][strtolower($this->Session->read('Store.Store.currency_id'))] === 0 ? "Add a FREE {$option['Product']['name']} " : 'NULL'); ?>//"Add a " . . $option['Product']['name'] . ' for ' . ((!isset($option['price']) ? $option['Product']['price_' . strtolower($this->Session->read('Store.Store.currency_id'))] : (: $option['price'][strtolower($this->Session->read('Store.Store.currency_id'))])); ?> -->

$3,301.00 CAD

2 to 3 weeks



Questions? Ask our Expert


FLIR PathFindIR 334-0057-00 Offers

Features

  • NO Pedestrian and Animal Detection with this version
  • 7.5Hz
  • Rugged design assures operability even in the toughest environments
  • 24° FOV lens balances longer detection range with viewing of either side of road
  • Automatically activates when temperature reaches 4°C providing use in cold weather conditions
  • IP69 rated, hermetically sealed providing extra insurance in all weather conditions
  • 2.6" × 3.4" × 3.2" allows integration into many tight spaces or OEM systems
  • 320×240 resolution provides crisp clean images and greater viewing distances
  • NO Logo and Splash Screen Upon Startup

Applications

Ideal for the following applications: Automotive, Trucking, Law Enforcement, Fire Rescue, Recreational Vehicles, Maritime, Mining.

FLIR PathFindIR II Specifications

Sensor Type   320 x 240 Uncooled Microbolometer
Field-of-View  24° (h) x 18° (v)
Spectral Band  8-14 microns (LWIR)
Sealed Design  IP69 rated, hermetically sealed providing extra insurance in all weather conditions
Outputs  NTSC
Power Requirements  12 VDC
Power Consumption  2 W (6 W w/heater on)
1.8 A max. system current
Spectral Band  8-14 microns (LWIR)
Operating Temperature  -40°C to 80°C
Weather Resistance (Camera)  Hermetically Sealed, Automotive Qualified
Weather Resistance (ECU)  Non-Hermetic; Passenger Compartment mount required
Window  High-Impact Resistant Optic w/ Built-in Automatic Heating Element
Camera Dimensions  2.6" × 3.4" × 3.2" (60 × 86 × 82 mm )
Camera Weight  0.6 lb (300 g)
ECU Dimensions 5.8" × 4.3" × 0.9" (148 × 110 × 24 mm )
ECU Weight  0.7 lb (350 g)
Click here for complete specifications on the FLIR 334-0057-00

Accessories

Click on a category to view a selection of compatible accessories with the FLIR PathFindIR II 7.5Hz Vehicle Thermal Imaging Camera, No Logo Screen.

FLIR PathFindIR II Installation Kit 421-0053-00 82814
Accessories needed to connect and mount the monitor to the camera for the PathFindIR II.
$1,140.00 CAD

Learn More
FLIR PathFindIR II Wiring Harness 308-0240-00 82819
Wiring Harness and 20 foot Power/Video.
$119.00 CAD

Learn More
FLIR Safety Vision 7" LCD Monitor Kit 4105734 11454
LCD Monitor Kit. Includes a Sun Shield and Mounting Bracket.
$912.00 CAD

Learn More
FLIR PathFindIR II Mounting Bracket and Arm 261-2319-00 82815
Mount your PathFindIR with this Bracket and Arm.
$60.00 CAD

Learn More
FLIR PathFIndIR II ECU Mounting Bracket 261-2270-00 82816
Mounting Bracket for ECU.
$60.00 CAD

Learn More
FLIR Replaceable Window Kit 421-0055-00 82820
Window Kit.
$405.00 CAD

Learn More
FLIR Safety Vision LCD Cable 4105735 11455
BNC to S-Video, 9 foot.
$68.00 CAD

Learn More
