Armasight AIM Systems
Armasight AIM Systems

Armasight AIM Systems Armasight AIM Systems Armasight AIM Systems

Armasight AIM Systems

Model: ANKI000001 | Order No: ANKI000001 Series

The AIM is a new concept from Armasight which converts an existing NVD into a compact NV rifle sight.


Select a Model:

Armasight AIM-L PVS-14 Kit Mount with bracket for PVS-14 and 3x magnifier

Armasight AIM-L PVS-14 Kit - Advanced Integrated Mount with bracket for PVS-14 w/3x Magnification (PVS-14 and 3x lens are not included)

$95.00

was $731.00

Availability: 3 in Stock

Armasight AIM PVS-14 Kit Mount with bracket for PVS-14

Armasight AIM PVS-14 Kit - Advanced Integrated Mount with bracket for PVS-14 (PVS-14 is not included)

$511.00

Availability: 1 to 2 Weeks

Armasight AIM - Advanced Integrated Mount

Converts an existing night vision device into a compact NV rifle scope by projecting a reticle inside.

$451.00

Availability: 3 to 4 Weeks

Armasight AIM PRO - Advance Integrated Mount Pro

Converts an existing night vision device into a compact NV rifle scope by projecting a reticle inside. Runs off CR123 or AA battery.

$682.00

Availability: 3 to 4 Weeks

Armasight AIM PRO-L - Advance Integrated Mount Pro for NV with 3x Magnifiers

Converts an existing night vision device into a compact NV rifle scope by projecting a reticle inside. Extended for monoculars with 3x Magnification. Runs off of CR123 or AA battery.

$772.00

Availability: 3 to 4 Weeks



What Is It?

The AIM (Advanced Integrated Mount) is a compact method of converting a night vision monocular into a rifle sight. Rather than struggle with daytime optic heights and rail space, the AIM projects a reticle inside the night vision device to make a compact, quick detach solution. Zeroing is done inside the unit, and the familiar circle and dot reticle does not interfere with the night vision device.

Who Uses It?

When rail space is at a premium, or flexibility is a must, the AIM system excels. When you need your full field of view, or to be able to swap out the I2 device in a hurry, the AIM system is the best possible option.

What Is It Designed For?

The core focus of the AIM is to produce a compact night vision rifle sight without needing attitional rail space, IR lasers, or a dedicated rifle device. It converts systems you already own to double as an effective sight.

What Is It Capable Of?

Different variants make the AIM a universal system with many different posiblities. The AIM-L is available for use with magnified night vision devices, for when 3x magnification is desired. The AIM Pro switches from a 2023 coin battery to a cross compatibile system. Using either a AA or CR123 battery, the AIM Pro offers flexiblity and standardization with other battery powered devices you may be carrying. All of these systems can also be converted into a 3x daytime optic or daytime reflex sight. The means that you can switch between day and night systems without having to rezero anything.

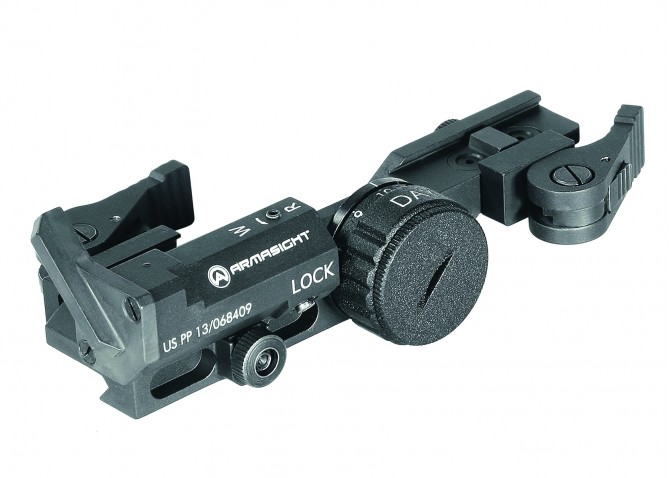

AIM Advanced Integrated Mount

The Armasight AIM (Advance Integrated Mount) is a ground-breaking and exciting new concept. This night vision accessory allows the operator to convert our night vision monoculars to a weapon sight. AIM is housed in a low-profile housing which also incorporates a Picatinny mount on the underside, and a dovetail mount on the top. By mounting AIM onto your rifle, and fitting either our night vision monoculars or AIM optional day optics, the AIM can be bore-sighted to your rifle, meaning that the operator can switch between modes as required.

Unlike conventional systems that require the night vision unit to be mounted behind a day optic, AIM projects the reticle directly into the Night Vision monocular lens! In practice, what this means is that there is no longer a reduced field of view through the night vision device, or any shadowed area that is difficult to see through (caused by conventional red-dot sights optics or outer edges). A small "HUD" type prism on the front of the AIM unit projects a 65MOA "Circle" and single 3.2MOA center aiming "Dot" directly into the night vision lens. The electro-optical aiming system consists of a collimated LED diode module, with dedicated windage and elevation adjustments, prismatic output window, power supply and 0-to-11 brightness adjustment switch.

Manufactured to high tolerances from aluminum alloy, the AIM mount system is light, robust, and designed to fit any Weaver or MIL STD 1913/Picatinny rails. Additionally the Armasight AIM features lockable, adjustable quick-release levers for easy, quick and reliable mounting and removal.

The Armasight AIM is an excellent choice for the on-a-budget night time hunter SOF assaulter constantly evaluating mission gear for size and weight, or for a police officer that needs to switch from patrolman duty to SWAT operation.

Key Features

  • Converts our Night Vision Monoculars to a Weapon Sight
  • Fast and Easy Target Acquisition
  • AIM Eliminates the need for Infrared Laser or Red Dot Sight
  • No obstructing optics or parts in your field of view
  • The only solution providing 100% full Field Of View of NVD
  • Adjustable Reticle Brightness
  • Optional 1X and 3.5X Day-Time Aiming Solutions
  • Fits any Picatinny or Weaver Rails with adjustable, locking
  • Quick-detach mount

Specifications

Dimensions136 x 76 x 42
Warranty2 Years
Adjustment Precision Range (degrees of arc)±1,5
Battery TypeCR2032 Lithium
Current Consumption at max brightness (mcA, max)125
Immersiontill 1 m for 30 minutes
Levels of Reticle Brightness11
Power (V)3,0 V
Reticle Illumination AdjustmentsManual
Reticle size for: "Dot"/"Circle" pattern (MOA)3.2 MOA / 65 MOA
Weapon Mount TypePicatinny rail

A version of this product can now be exported to Canada and Europe!

Standard generations of this night vision tube may be exported. As a result it may have an extra 3 days lead time and will ship directly from the manufacturer. Some US designated countries and groups may still not be eligible:
